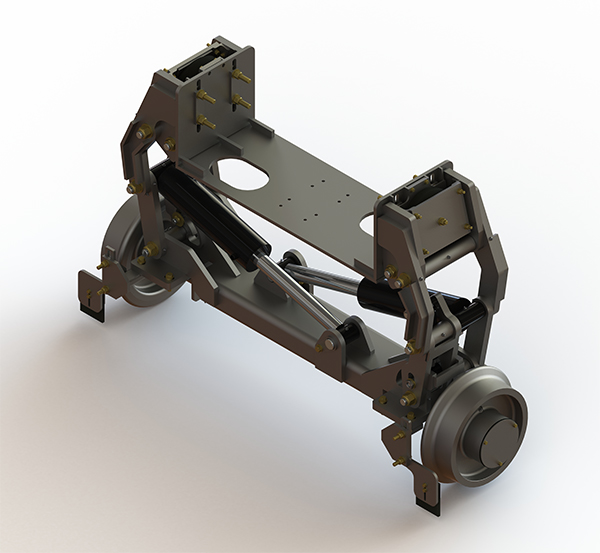

LS-60 Rear

LS-60 Rear

89,000 lbs. GVWR

The LS-60 rear was designed for applications that have limited clear frame space behind the rear tires. Continental managed to keep all the features we are known for while adding the ability to side shift and decreased the footprint to mount the hi-rail (14” of clear frame required). Hardened steel bushings are used at all pivot points to reduce the wear of larger weldments over the life of the unit.

Capacity:

89,000 lbs. GVWR

Type:

Vertical Rear

Weight:

Rear 1200 lbs.

Wheel Diameter:

Tread diameter 14" drop forged AAR profile

Wheel Spindle:

Precision Ground C-1045 steel, 2-3/4" diameter

Wheel Bearings:

Heavy duty tapered roller bearing

Downforce:

Aeon rubber spring rear (2” stroke)

Locking Mechanism:

Automatic mechanical locks, rear

Actuation:

Twin hydraulic cylinders, rear

Derail Skids:

Standard, rear

Rail Sweeps:

Standard, rear

Insulation:

Track circuit insulation standard, rear

Alignment:

Simple adjustment for toe-in and toe-out, side to side and axle alignment

Side shifting:

Up to 4” each side

Rear air brakes

Track signal shunt kit

In-Cab retraction

16” wheels
