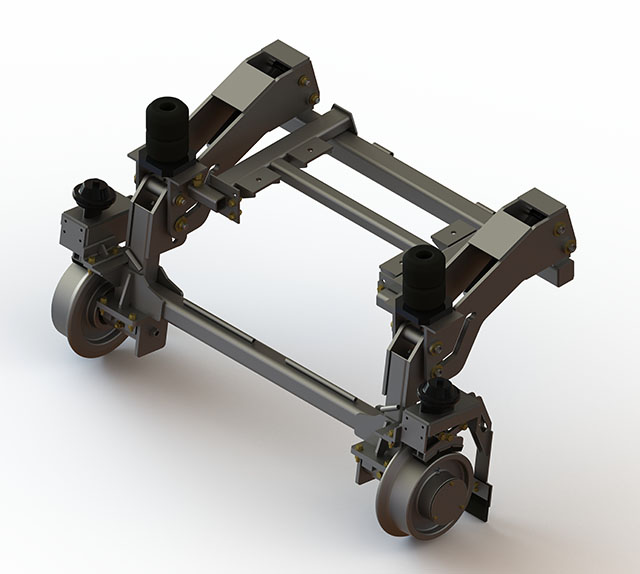

35 Series

35 Series

26,000 to 39,000 lbs GVWR TRUCKS

Designed for heavy-duty Class 6-7 single axle chassis, the Continental Railworks G-35 hi-rail unit offers several features that are unique to our products. Fully automatic mechanical locks, both front and rear, provide excellent operator safety and ease of use, eliminating the need for pins, hooks or levers to be actuated. Steel reinforcements are used to reduce the wear of larger weldments over the life of the unit. As with all Continental Railworks hi-rail units, drop forged wheels are used as opposed to cast in order to increase depth of hardness.

The full unit adjustability, including alignment, toe-in, toe-out, wheel gauge and pressure adjustment allow the unit to be perfectly tuned to several vehicle types, conditions or applications

Capacity:

39,000 lbs. GVWR

Type:

Rotary Front - Rotary Rear

Weight:

Front and rear combined 1450 lbs

Wheel Diameter:

Tread diameter 12" drop forged AAR profile

Wheel Spindle:

Precision Ground C-1045 steel, 2-3/4" diameter

Wheel Bearings:

Heavy duty tapered roller bearing

Downforce:

Aeon rubber spring rear

Locking Mechanism:

Automatic mechanical locks front and rear

Actuation:

Twin hydraulic cylinders, front and rear

Derail Skids:

Standard, front and rear

Rail Sweeps:

Standard, front and rear

Insulation:

Track circuit insulation through stub axles, standard, front and rear

Alignment:

Simple adjustment for toe-in and toe-out, side to side and axle alignment

Rear air brakes

Front and rear hydraulic brakes

Track signal shunt kit

In Cab Retraction

Deployment Power Unit
