08 Series
Up to 8,000 LBS GVWR

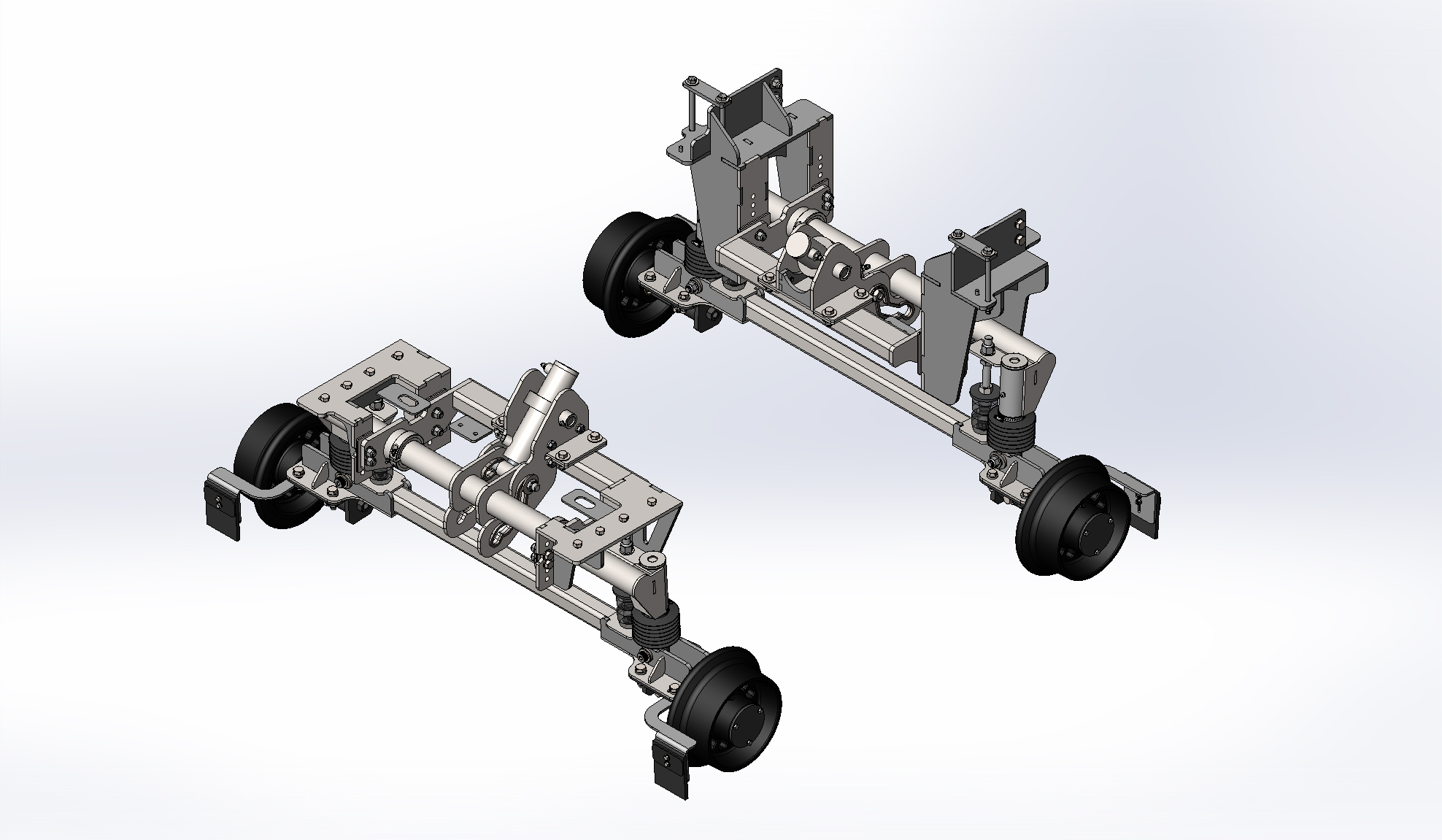

The Continental Railworks 08 Series hi-rail unit is designed for Ford F-150s and Expeditions, featuring:
– Fully automatic mechanical locks at the front and rear for enhanced safety and ease of use.
– Nylon wear rings to prevent steel-on-steel contact, reducing maintenance and lubrication needs.
– Drop-forged wheels, providing superior durability compared to traditional cast or rubber treads.
– Comprehensive adjustability for alignment, toe-in, toe-out, wheel gauge, and pressure adjustments, allowing customization for optimal performance.
These features make it an effective and long-lasting choice for rail-related tasks.
Capacity:
Up to 8,000 lbs. GVWR
Type:
Rotary Front - Rotary Rear
Type:
Rotary Front - Rotary Rear
Weight:
Front and rear combined 880 lbs. (includes mounting components)
Wheel Diameter:
10" drop forged AAR wheel profile
Wheel Spindle:
Precision Ground C-1045 steel, 2" diameter
Wheel Bearings:
Heavy duty tapered roller bearings
Weight Adjustment:
Rubber aeon front and rear
Locking Mechanism:
Fully automatic locking front and rear
Actuation:
Single hydraulic actuators, front and rear
Derail Skids:
Standard, front and rear
Railsweeps:
Standard, front and rear
Rail Sweeps:
Standard, front and rear
Insulation:
Track circuit insulation standard, front and rear at the stub axle
Wear Rings and steel reinforcements:
Standard at all steel-on-steel wear points, front and rear
Alignment:
Simple adjustment for toe-in and toe-out, side to side and axle alignment
Aluminum truck rims
Track signal shunt kit
Wireless Remote Control
Push button controls with in cab retraction
